Overview
Specifications
| Supported Video Resolution | TV: 1080p, 1080i, 720p, 576p, 480p PC: 1024x768, 1280x1024, 640x480, 800x600 (Not 4K) |
|---|---|
| 3D COMPATIBLE | Yes |
| Audio Formats Supported | Uncompressed 7.1 PCM , DTS , Dolby Digital Surround Sound |
| Video Formats Supported | TV: 1080p, 1080i, 720p, 576p, 480p PC: 1024x768, 1280x1024, 640x480, 800x600 |
| Ports & Interfaces | HDMI, Mini-USB |
| Wireless Range | 100 ft (streaming line of sight results in maximum range) |
| Transmission Frequency | Transmission Frequency 4.9~ 5.9GHz with Dynamic Frequency Selecting (DFS) |
| System Latency | ≤1 ms |
| Wireless Technology | ARIES Technology |
| Environmental Requirements | Operating temperature: 0° to 40° C, Storage temperature -10 ℃ ~ +55° C, Relative humidity: 15 ~ 80% RH |
| Source Compatibility | Any laptop or desktop system containing an HDMI port including popular models from these manufacturers: Alienware, Asus, Lenovo, Dell, HP, Acer, Apple (Display Port cable not included) |
| Display Compatibility | Any high-definition television including 3D TVs containing an HDMI port, including popular models from these manufacturers: Hitachi, JVC, LG, Mitsubishi, NEC, Panasonic, Philips, Pioneer, Samsung, Sony, Sharp, Toshiba, Vizio, Westinghouse |
| Wall Mountable | YES |
| Remote Control | No |
| Power Input | Receiver: 100-240VAC/50-60Hz (Wall Adapter) Transmitter: USB |
| Power Output | Receiver: 5VDC, 2A Transmitter: 5VDC, 1A |
| Transmitter Dimensions | 3.4 x 1.3 x 0.63 inches / 86.4 x 33 x 16 mm (LxWxH) |
| Multiple Transmitters | No |
| Receiver Dimensions | 3.7 x 3.8 x 1.1 inches / 94.0 x 20.3 x 27.9 mm (LxWxH) |
| Multiple Receivers | No |
| Adapter Compatibility | Nyrius does not recommend using Digital to Analog Adapters with our ARIES Products, however HDMI to miniHDMI/microHDMI adapters are compatible |
| System Requirements | Any laptop or desktop system containing an HDMI port including popular models from these manufacturers: Alienware, Asus, Lenovo, Dell, HP, Acer, Apple (Display Port cable not included) |
| Bandwidth | 40Mhz |
| TX/RX Channel | 1 RX / 1 TX |
| Certifications | FCC Certified, CUL/UL |
| UPC | 871363021793 |

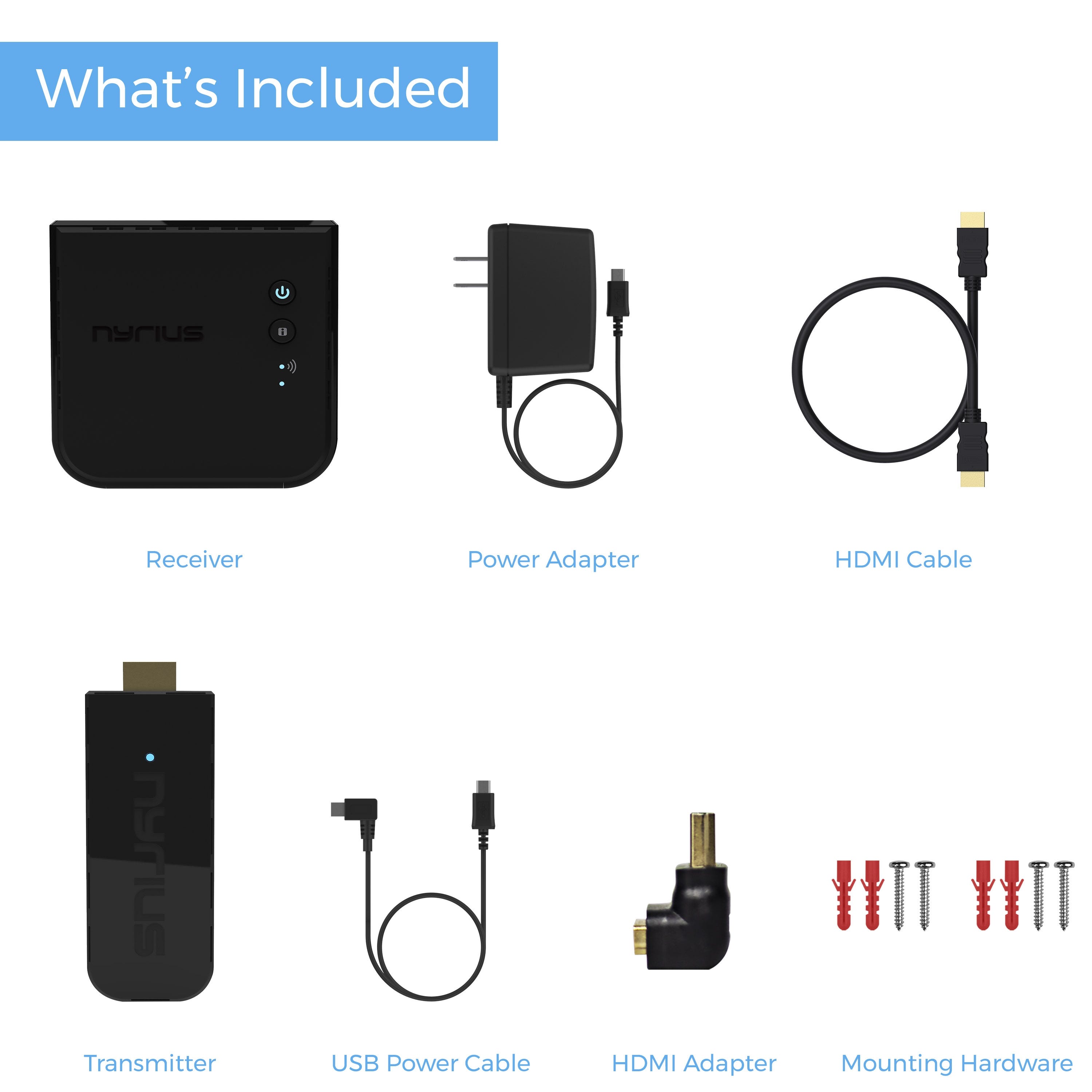

| What's Included |
Press
Unbox Therapy Reviews The Aries Pro with the Nintendo Switch
"It's the real deal, it's magical"
DSLR Video Shooter Reviews the Aries Pro
"I really love that literally anything that has an HDMI input or output will work with this system"
Watch the Full Video
PyroDrone Unboxes the Aries Pro
"There's no cables anywhere, it's all very portable, and it is working flawlessly"
Watch the Full Video
Android Rundown Review the Aries Pro
"the practical uses were fairly far-reaching"
Read the Full Review
Gameranx Reviews the Aries Pro
"Nyrius’ streaming products work beautifully. If you want the freedom of placement for your entertainment devices without the hassle of carting them around the house, Nyrius may have what you’re looking for."
Read the Full ReviewCustomer Reviews
-
For me, this was a perfect plug-and-play experience, no lag or interference whatsoever. It has quantifiably improved my quality of life, no joke.
-
Having used the Nyrius Aries Pro+ Wireless HDMI for a bit over a month, we're looking for another solution. It overheats which causes it to quit. It connected quickly and easily. Picture quality is very good. Lag is barely there - perfectly watchable. Range in line of sight is good. Putting a person in a chair between the tx and rx 12 ft. away can cause interference which shows up as occasional momentary dropouts. Overall, my big disappointment is that this gets hot and quits, otherwise, I'd love it.
Update: The TX failed completely about 9 months in. Nyrius honored the warranty and sent a replacement unit. A couple minor hoops to jump through, but nothing unreasonable. So let's keep them in the Good Company category and hope they continue to improve their products. I have another unit in service currently but I'll update if this one later causes trouble.
Don't be afraid to get these Nyrius units - there isn't anything better at the moment, and there's been a few years for the competitors to try. Just chalk it up to a very difficult feat. My suggestion is to have them fully off when not in use, as this should prolong the life. Good luck! -
Set this unit up on a 4K TV on the Patio. Even with line of sight being correct, it works but the signal begins to drop out after a couple of hours, it returns after a few minutes, but it is a continuous problem. The better option would be an OREI HDMI Splitter and long HDMI Cable. I’ve use this method before with excellent results.
-
This is a very nice product. I've been using it for my ps4 with a projector. I keep my ps4 in the living room with a Tv and I can play it in my room on a projector without moving my gaming console. Very useful and awesome product. 0 Latency just as the company has mentioned, nothing negative on this product. Great all around!
-
Works great with any buffering
-
Great
-
Product lasted one year then just quit working for no reason. It was kept in a controlled environment.
-
About a week after getting the Nyrius Aries Pro, it broke.I tried to get customer support but e-mail support took more than 24 hours for each e-mail.Amazon finally had to return the product for Nyrius.I then bought the IOGEAR GWHD11, which looks like it actually uses the same Firmware as the Nyrius Aries Pro.The new product has worked, so I have nothing more to add at this time.
-
Is amazing for wireless signals to eliminate cables to my projector, no lag, no signal loss. I use it for the tv signal and bluray using a HDMI switch and for 4k UHD I use directly to my projector a fire tv 4k UHD at his port 2 Optoma UHZ65.Sincerily are amazing item.
-
Bought in 2019 - it really worked well. However it died after about 16 months, so product life is not so great. Looking once again for a replacement that will hopefully last longer.
-
Worked great at first but now won't work after only owning 5 months.
-
I bought this and paid the higher price for the reliability of zero latency wireless HDMI. I was not disappointed. We use two PTZ cameras each with wireless HDMI transmitters and they each work perfectly together with zero latency. We are using a Blackmagic ATEM Mini and vMix and live-streamed Sunday worship service with no issues. The one thing I learned during setup is make sure you keep the receivers at least 4 feet apart, or you will probably get interference. Very satisfied with this product.
-
This is a second Nyrius device for us, to replace our previous device. Because the Nyrius Aries Pro Wireless HDMI Transmitter and Receiver to Stream HD 1080p 3D was still the more highly rated and recommended device, we went with it again. Set up was easy and quick, and the picture is great. Tech support in the past was good. The device has no remote control, works wirelessly, so rated that high because of the very good picture.
-
I have purchased 5 of these for various departments conference rooms to display content on a tv on a cart. We love the quality of the picture and lack of lag that I have seen with other wireless gateways.
-
Delivered on time and in good condition. Works as described. Can receive tv signals wirelessly from my living room tv to my bedroom which is about 45 feet away. Saved me the trouble of running HDMI cables around the house.
See all reviews
Resources
Manual
Guides
Video
FAQs
Aries Pro makes a fantastic wireless HD solution. You can send video from sources such as Laptops, PCs and gaming consoles up to 100 feet away, with zero latency!
Also known as input lag, Nyrius Aries Wireless HD transmitters and receivers are considered Zero Latency. This means if you’re using a computer and move your mouse, there is no delay. This makes Aries product great for presentations and gaming!
Aries Pro includes a transmitter and receiver. The receiver includes a power adapter to be connected to a wall outlet. To keep your transmitter portable, it’s powered by USB from the source device or in some cases an external power pack may be necessary if a USB power connection is not available. The transmitter must be connected to both USB and HDMI to transmit.
Nyrius Aries Pro requires both a USB and HDMI connection, USB for power and HDMI for video. This allows the transmitter to act as an invisible HDMI cable with no USB drivers required!
Aries Pro is designed primarily for use with a computer. If you have another monitor connected already, this can be used with the extend feature to act as a wireless second monitor. It can also be used to duplicate the display of that display on another monitor or TV or make your main display wireless.
Aries Pro does not offer the option of multiple receivers for sending video to multiple displays.
