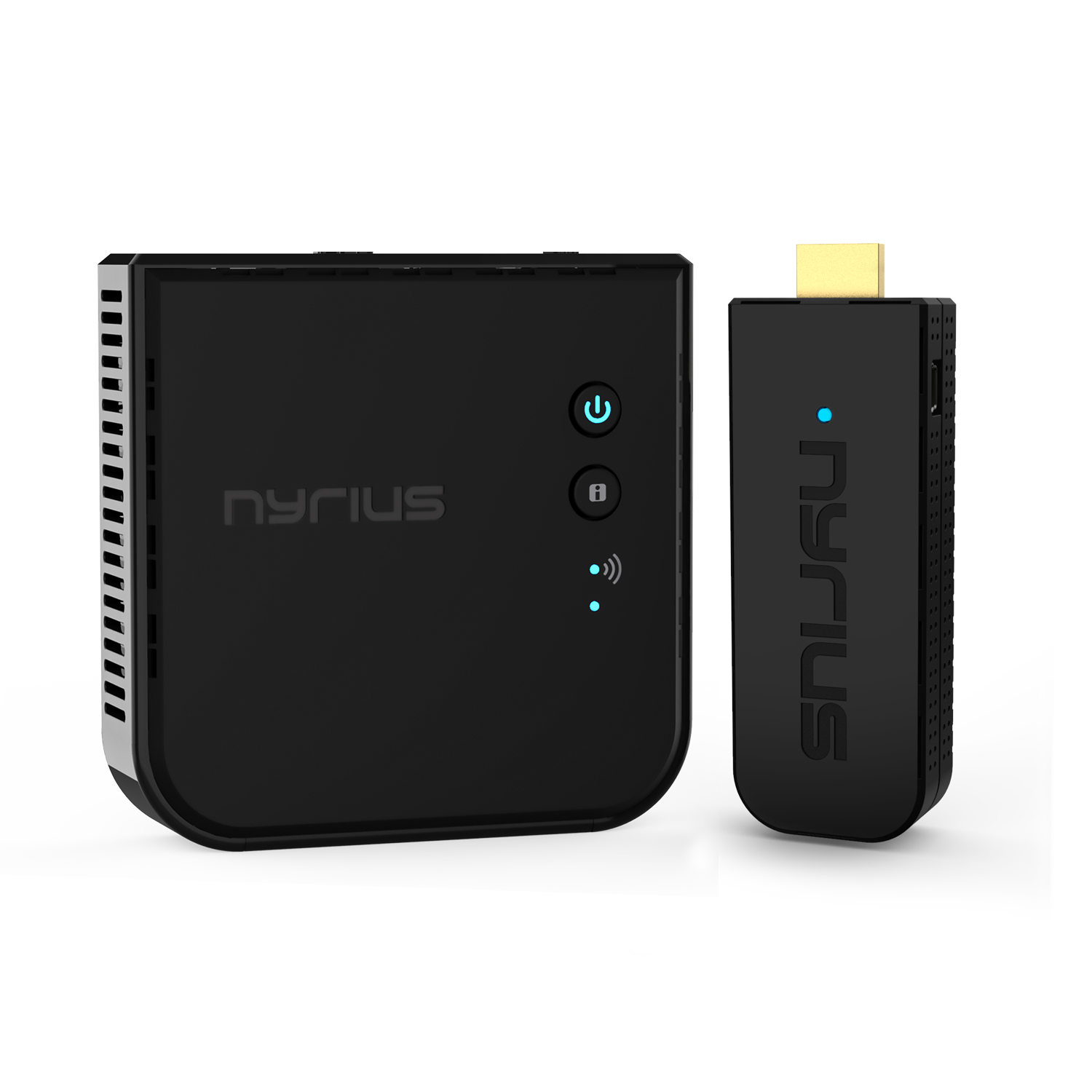

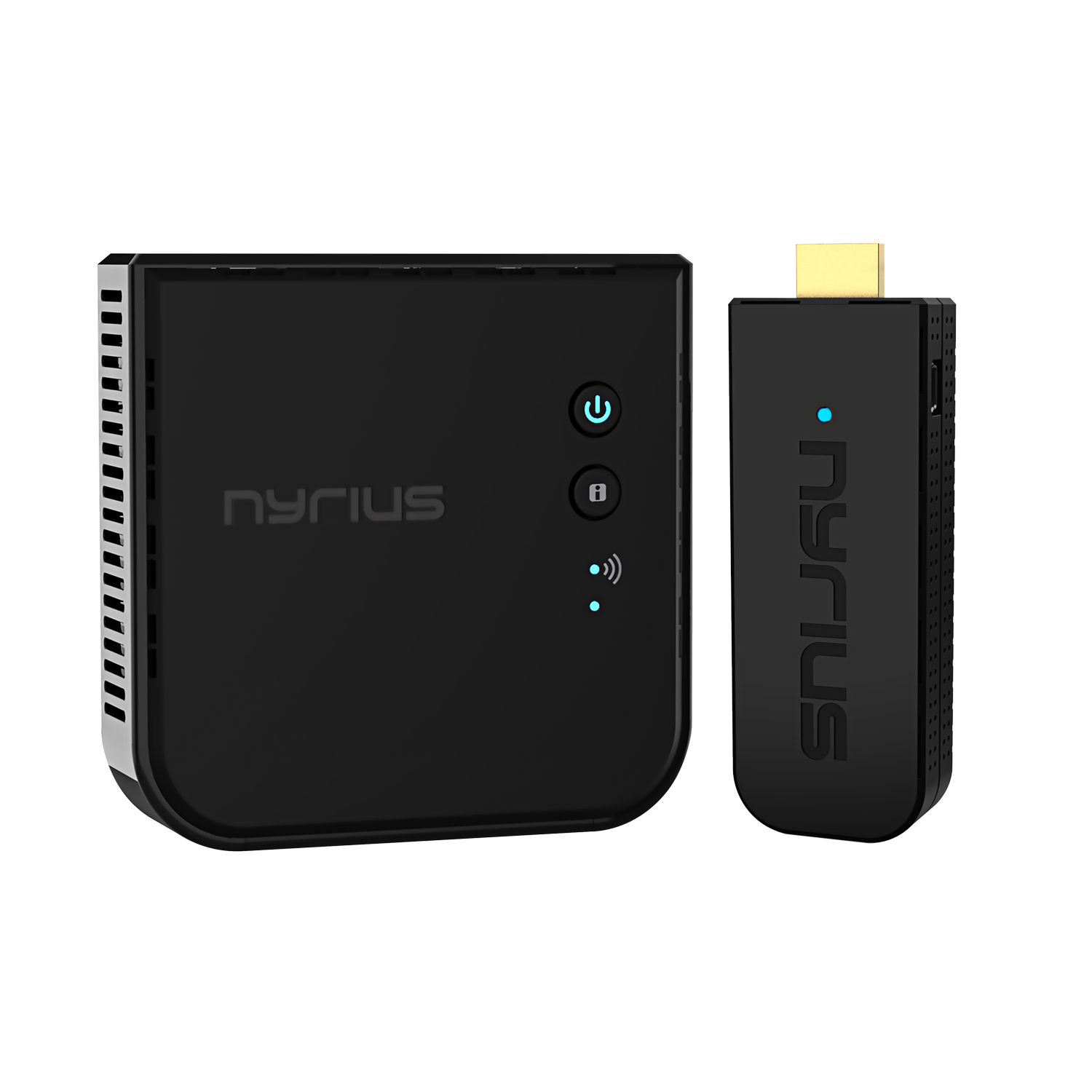

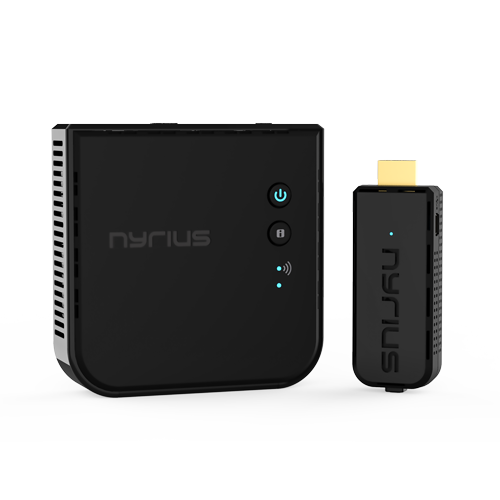

ARIES Pro+ Wireless HD Video Transmitter & Receiver
to Stream 1080p Video up to 165ft (NPCS650)


COMPLETE WIRELESS VIDEO FREEDOM
View 1080p movies, TV shows, online video wirelessly from your laptop, PC, Drone, DSLR Camera to HDTV, projector, monitor or conference room display

HIGH PERFORMANCE WIRELESS STREAMING
Powerful long-range signal transmits through walls, floors and ceilings up to 165ft away (streaming line of sight results in maximum range)

PURE UNCOMPRESSED HD VIDEO
Send crystal clear, uncompressed HD video & digital audio with ease. Signal experiences zero latency (real time)

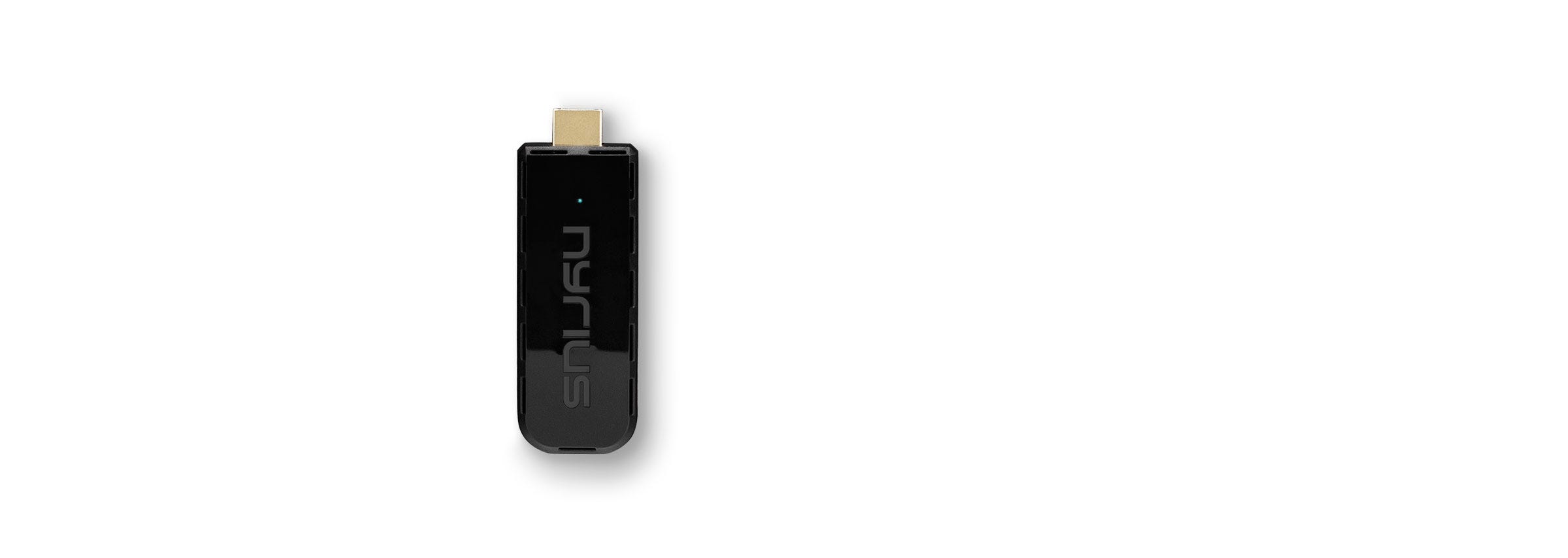

PLUG AND PLAY SETUP

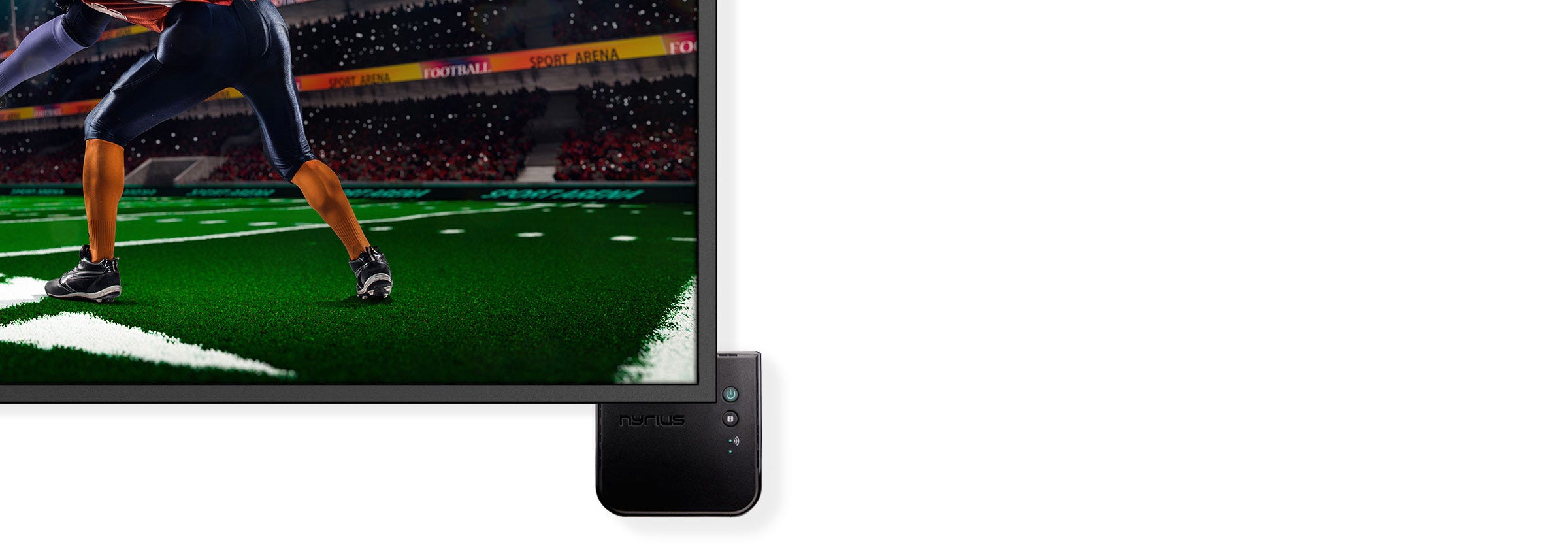

Easy to install without needing to install expensive, inconvenient cables. No software or WiFi connection required. Transmitter: 1x HDMI input, Receiver: 1x HDMI output

COMPACT TRANSMITTER DESIGN

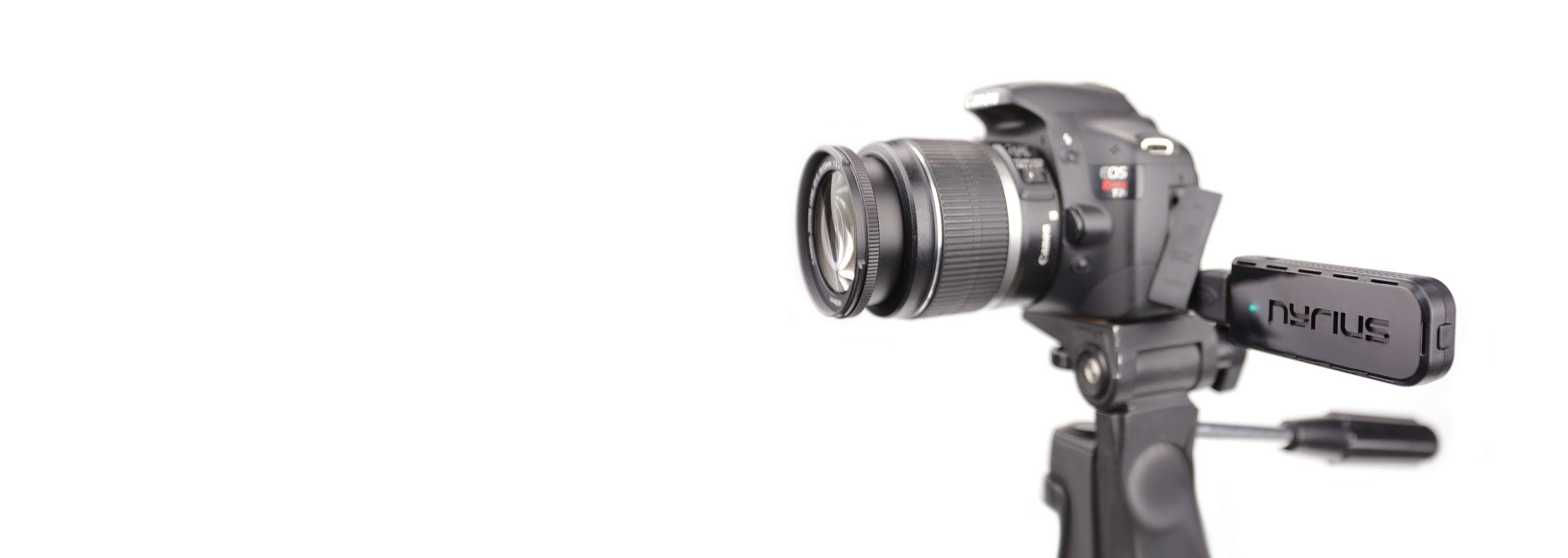

Optimized for laptops, UAV Drones and streaming live camera footage and any other HDMI source to a monitor or screen; powered by USB
Overview

Specifications

Supported Video Resolution | TV: 1080p, 1080i,720p, 576p, 480p PC : 1024x768, 1280x1024, 640x480, 800x600 (Not 4K) |
---|---|
3D COMPATIBLE | Yes |
Audio Formats Supported | Uncompressed 7.1 PCM , DTS , Dolby Digital Surround Sound |
Video Formats Supported | TV: 1080p, 1080i,720p, 576p, 480p PC : 1024x768, 1280x1024, 640x480, 800x600 |
Ports & Interfaces | HDMI, Mini-USB (Power only) |
Wireless Range | 165 ft (streaming line of sight results in maximum range) |
Transmission Frequency | Transmission Frequency 4.9~ 5.9GHz with Dynamic Frequency Selecting (DFS) |
System Latency | ≤1 ms |
Loop-through | No |
Wireless Technology | ARIES Technology |
Environmental Requirements | Operating temperature: 0° to 40° C, Storage temperature -10 ℃ ~ +55° C, Relative humidity: 15 ~ 80% RH |
Source Compatibility | Any high-definition television including 3D TVs containing an HDMI port, including popular models from these manufacturers: Hitachi, JVC, LG, Mitsubishi, NEC, Panasonic, Philips, Pioneer, Samsung, Sony, Sharp, Toshiba, Vizio, Westinghouse |
Remote Control | No |
Power Input | Receiver: 100-240VAC/50-60Hz (Wall Adapter) Transmitter: USB |
Power Output | Receiver: 5VDC, 2A Transmitter: 5VDC, 1.5A |
Transmitter Dimensions | 3.4 x 1.3 x 0.63 inches / 86.4 x 33 x 16 mm (LxWxH) |
Multiple Transmitters | No |
Receiver Dimensions | 3.7 x 3.8 x 1.1 inches / 94.0 x 20.3 x 27.9 mm (LxWxH) |
Multiple Receivers | No |
Adapter Compatibility | Nyrius does not recommend using Digital to Analog Adapters with our ARIES Products, however HDMI to miniHDMI/microHDMI adapters are compatible |
System Requirements | Any laptop or desktop system containing an HDMI port including popular models from these manufacturers: Alienware, Asus, Lenovo, Dell, HP, Acer, Apple (Display Port cable not included) |
Standard Protocol | HDMI 1.3, HDCP 1.2 |
Bandwidth | 40Mhz |
TX/RX Channel | 1 RX / 1 TX |
UPC | 061783270349 |
What's Included |
Customer Reviews
-
I used this receiver for a display at my church it would work 90% of the time without any hickup but then a year later it would flicker easy and I noticed it getting really hot. Now two years later it no longer wants to pair to the receiver and I'm stuck with some broken tech. Might be on the budget side of these things but you get what you pay for.
-
When it works it works great. Easily gets stepped on by WiFi and overheats.
-
Rebecca was EXTREMELY patient in helping resolve the pairing issue with my Nyrius Pro
-
I have purchased this on September 23, 2020
TOTAL CDN$ $465.74 (the extended rang) time to time the unit was disconnecting. We used for livestream contacted to a Canon VIXIA HF G50. It stop working 3 weeks ago. I give only 1 star because this was expensive item and lasted only 1 year. -
This device works well in terms of video and sound which is very ok but in terms of transmission range is so bad. It won't work after 20ft and any small obstacle courses signal loses which i didn't expect because they said it can transmit through walls but it can't
-
Having used the Nyrius Aries Pro+ Wireless HDMI for a bit over a month, we're looking for another solution. It overheats which causes it to quit. It connected quickly and easily. Picture quality is very good. Lag is barely there - perfectly watchable. Range in line of sight is good. Putting a person in a chair between the tx and rx 12 ft. away can cause interference which shows up as occassional momentary dropouts. Overall, my big disappointment is that this gets hot and quits, otherwise, I'd love it.
-
The adapter is too thick to fit in the ps4 hdmi slot, same issue for some PCs and other devices, need to purchase a separate extension hdmi. I have tried using it through one apartment wall at 10ft distance and it fails to stay connected, overall a let down for me but the zero latency is true and spot on, just need a clear line of sight for a good connection.
-
So I bought three unit and label them, so it doesn't mix up for pairing or during moving around while streaming. Only one paired (Link A) while Link B and C Transmitter get connected to something else (solid light on) and the receiver keeps blinking for ever not connecting or receiving signal
the only one the is connected has good signal, I think this might be a frequency issue -
Tried to connect PC to HDTV using 1080P. Worked for a while - about a week, then the transmitter started repeating connection and disconnection to the PC. PC kept trying to set the display whenever the transmitter discnnoected and re-connected - almost every minutes, and it makes both PC and TV non-usable. Tried source and display (notebook and Monitor), and same problem. When I downgraded the signal (1080P to 720P), it worked for a while (about an hour) without the issue, then it repeated the problem again for 720P signal. For the price, it is big disappointment. Unfortunately, I installed the product weeks after I received it from AMAZON, and the free return window is closed when the problem happened. AMAZON just told me to deal with the manufacturer directly, and I emailed the manufacturer. Hope they accept the return...
-
Such a disappointment and waste of money. I have botched someone's wedding livestream because if this. It tests fine in a small room but any more than 5 meters it cuts out. It's a complete waste of money and false advertised. We've tested it multiple times and same thing very poor signal and constantly drops connection over 5 meters.
-
Our 2nd Nyrius and the pro version is simply outstanding!
-
Could not get this to sync. Wasted an afternoon with this. Bummed, I thought since this was Amazon recommended and expensive it would be awesome...not the case. Returning
-
Display lost sync every 5 to 10 minutes. This was at a distance of about 10 feet from laptop to display.I don't use it.
-
I have a unit, and when it works it works quite well. The problem is that it operates among the same frequencies as your 5GHz home router. Because of potential frequency conflicts, it doesn't always find a clear frequency to connect the recevier and transmitter, so its operation is intermittent. At my house, I use 2 separate routers and two 5GHz frequencies which don't change. I know which Nyrius frequencies are clear and will work, but the DFS in Nyrius is not always able to select the clear frequency (Channel 1 in my case). My recommendation to NYRIUS before I would buy another unit: Please install an option to manually select the NYRIUS operating channel. Channel 1 always works for me at my house, and the only way to get the NYRIUS units to handshake on Channel 1, is for me to manually disconnect the receiver unit and plug it in closeby to the transmitter unit, let them handshake to channel 1, then unplug the receiver and quickly plug it in at the TV's location 2 rooms away. It then comes on and displays Channel 1, and continues to operate perfectly. For some reason, the DFS can't make the units handshake from a distance because of the proximity of the 2 internet routers in the house. Manual selection of the NYRIUS operating channel would solve my problem.
-
Compact elegant looking (transmitter like large USB dongle, receiver like Apple TV size). Video is seamless no lag. Connects to itself instantly after power on. Audio also good but I ran through receiver first with Nyrius transmitter off the Output. Used for two years no problems.
See all reviews
Resources
Manual
Guides
Video
FAQs
Aries Pro makes a great same room wireless HD solution. You can send video from sources such as Laptops, PCs and gaming consoles up to 165 feet away, with zero latency!
Also known as input lag, Nyrius Aries Wireless HD transmitters and receivers are considered Zero Latency. This means if you’re using a computer and move your mouse, there is no delay. This makes Aries product great for presentations and gaming!
Aries Pro+ includes a transmitter and receiver. The receiver includes a power adapter to be connected to a wall outlet. To keep your transmitter portable, it’s powered by USB from the source device or in some cases an external power pack may be necessary if a USB power connection is not available. The transmitter must be connected to both USB and HDMI to transmit.
Nyrius Aries Pro+ requires both a USB and HDMI connection, USB for power and HDMI for video. This allows the transmitter to act as an invisible HDMI cable with no USB drivers required!
Aries Pro+ is designed primarily for use with a computer. If you have another monitor connected already, this can be used with the extend feature to act as a wireless second monitor. It can also be used to duplicate the display of that display on another monitor or TV or make your main display wireless.
Aries Pro does not offer the option of multiple receivers for sending video to multiple displays.
