Wirelessly Receive Audio and Video Signals from the NY-GS10 System
Avoid running inconvenient cables throughout your home. Avoid additional cable and satellite box fees. Easily watch your satellite or cable box signal in another room, garage, or man cave with the Nyrius NY-GS10 Wireless Transmitter & Receiver System. Seamlessly broadcast your satellite/cable box, DVD player, gaming console, or any other audio/video device with standard RCA composite connections to any TV or projector..
Powerful Long Range Signal
This wireless system broadcasts real time audio and video up to 225ft (maximum transmission is under clear line of sight). It also transmits through walls, ceilings, and floors (range/signal quality will decrease based on environment). Watch TV in any room wirelessly with crystal clear sound and video. The directional antennas ensure an optimal radio frequency signal and minimize interference from other devices.

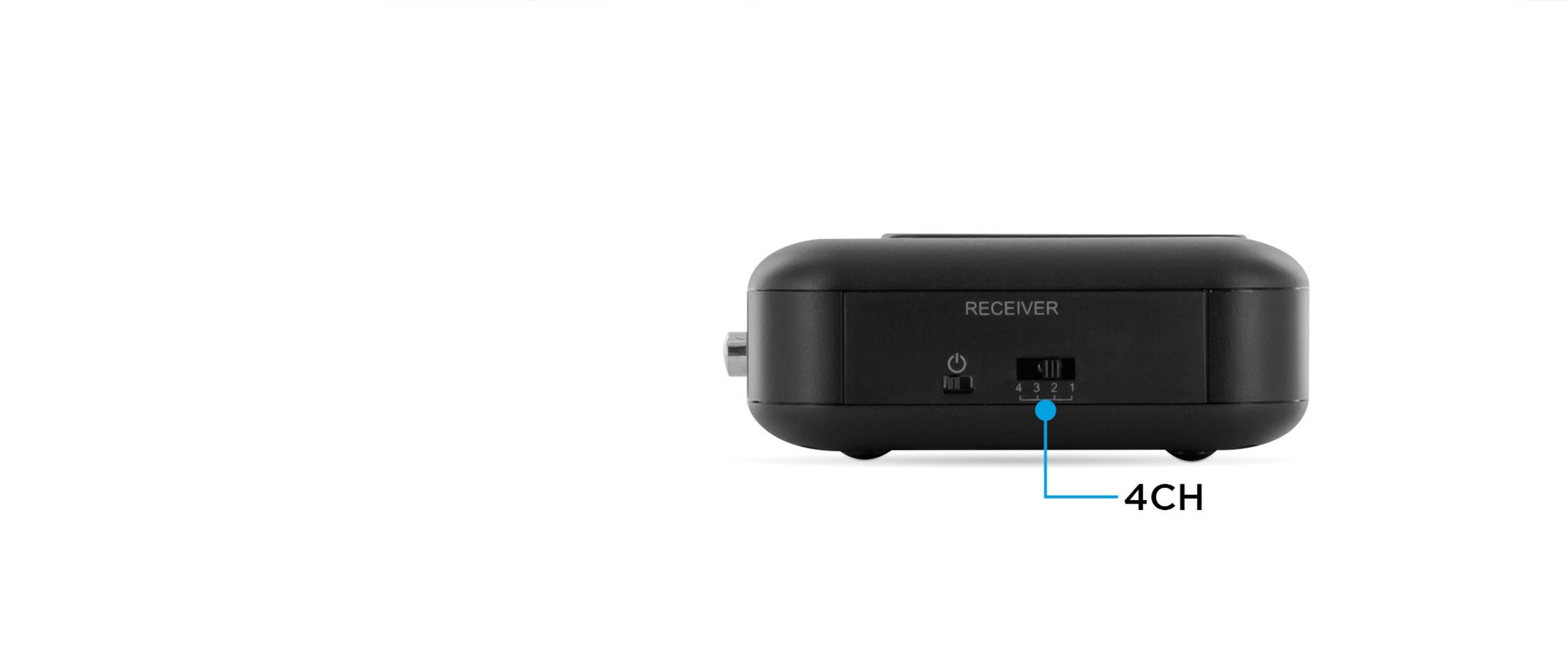

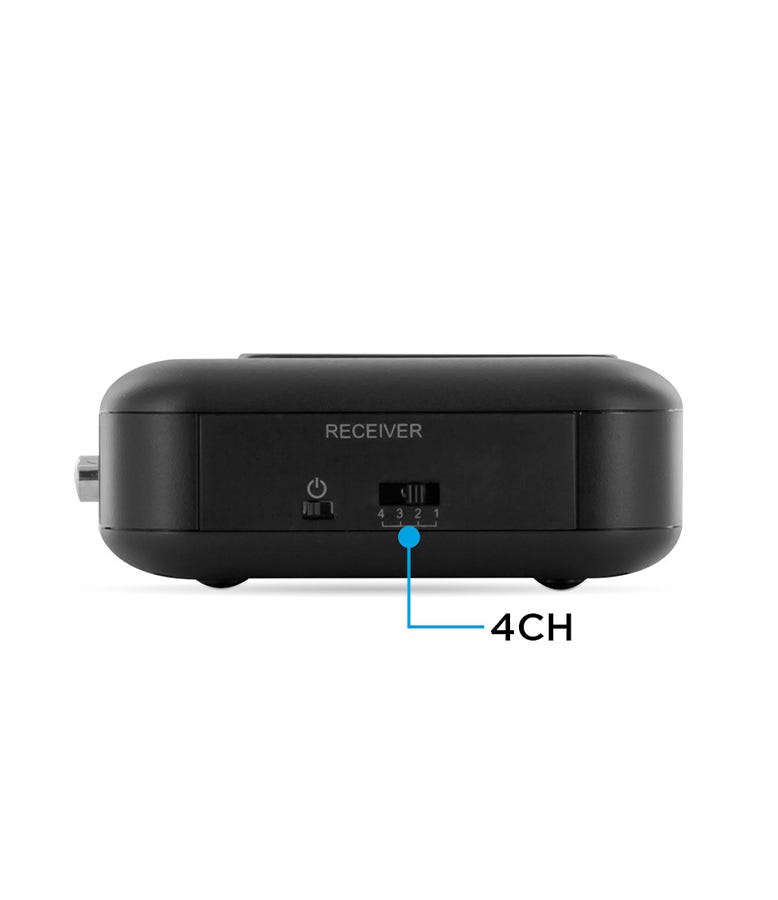

4 Channel Frequencies to Avoid Interference
There are 4 channel frequencies to choose from on this system. Matching the channel buttons on the transmitter and receiver will ensure both devices are on the same frequency.

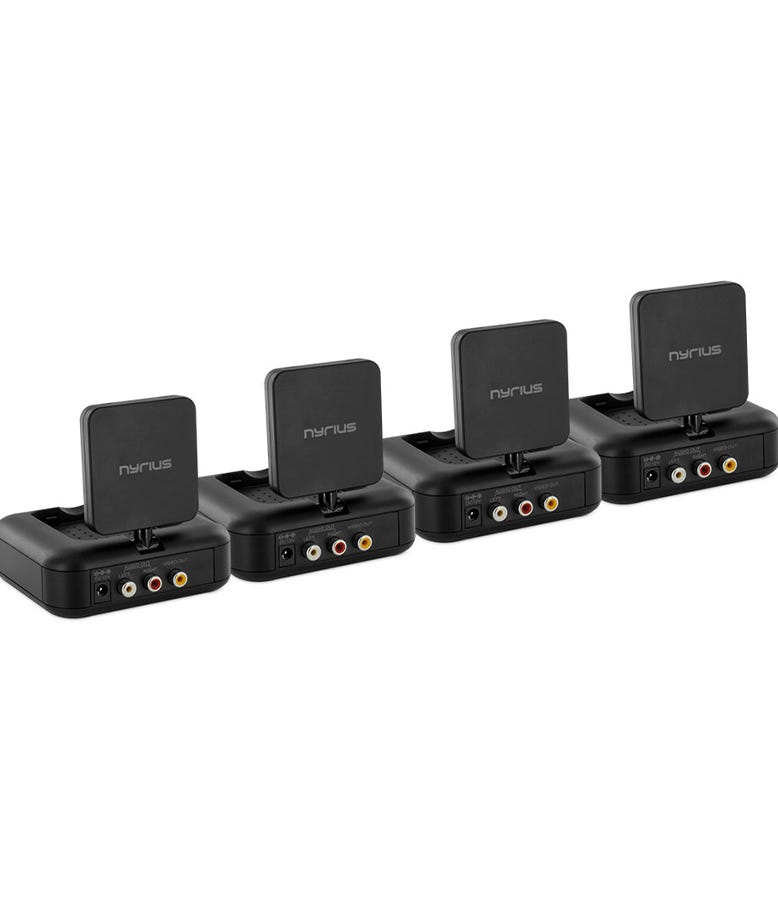

Expandable System
You can easily add additional receiver units to the NY-GS10 system depending on your needs. Purchase any number of additional receivers to broadcast audio and video to even more TVs.

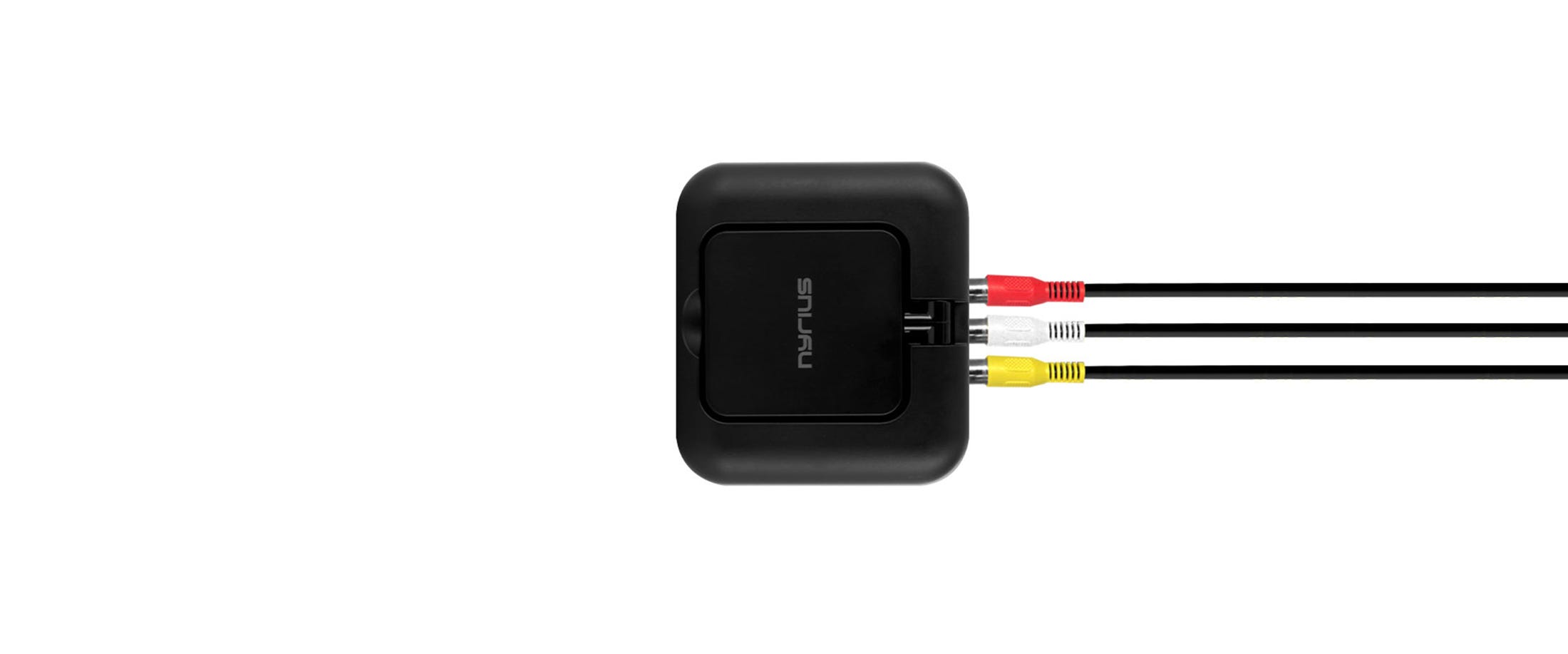

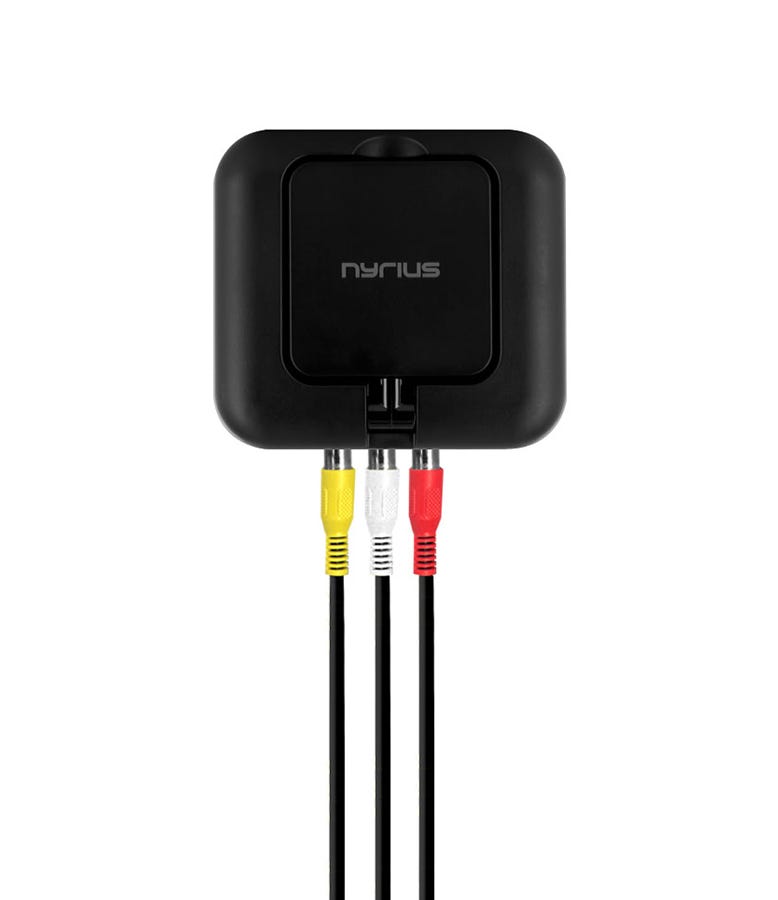

Easy to Set Up and Use
This wireless sender can be set-up in just minutes. Neatly organize all your audio/video components by keeping them out of sight without installing inconvenient cables throughout your home. No software required – simply plug in the included RCA cables to your TV and audio/video device.
Control Your Audio/Video Device from another Room
Not only can you watch your video source remotely, you can also control it. The IR (infrared) remote extender will send your device's remote control signals to the NY-GS10 receiver. Change channels, pause your movie – any function available on your remote will work using the remote extender.
Specifications
| Transmission Frequency | 5.8GHz |
|---|---|
| IR Frequency | 38/56KHz switching |
| Signal Range | Up to 225 feet (obstacles/interference decrease transmit distance) |
| Transmitter Connections | RCA audio/video composite jacks, external IR extender jack |
| Receiver Connections | RCA audio/video composite jacks |
| Ports & Interfaces | RCA audio/video composite jacks, external IR extender jack (transmitter only) |
| Remote Type | Infrared (RF remotes not supported) |
| Infrared Remote Control | Signal range up to 100 feet |
| Built-in Directional Antenna | Yes |
| Selectable Channels | 4 |
| Output Impedance | 2K ohm |
| Output Signal Level | 1.0 Vpp +/- 0.2 Vpp |
| Weight | 0.44lbs |
| Dimensions | 4.33 x 3.94 x 1.5 inches |
| Certifications | ICES, FCC Certified, CUL/UL |
| UPC | 061783256664 |
| What's Included | 5.8ghz Receiver With Built-In IR ExtenderExternal IR Extender110-240V AC Power AdaptersAudio/Video Composite Connection CablesQuick Start GuideLifetime Customer Support1 Year Manufacturer's Direct Warranty |
| Number of HDMI Inputs | No |
Customer Reviews
-
Great product and support by Nyrius fast shipping still works great after 6-7 mth of use. It goes through the walls and fridges distance about 30 feet. - Verified Store
-
Overlooked good reviews and decided to buy this product. Came on an open package. Had lil hard tome to get this units to work even though i am good with any type of electronics. Receiver part seems to have some troubles gets powered on its own may not power up once in a while at all. Channel switch appears to have only 3 positions on the receiver part despite should have 4 positions same as on the transmitter (just a faulty switch). I have surround speakers that are not powered so when i had everything to work the sound wasn't even close to what i have when they hooked up by wire to the audio amp. Now i am not sure if it is the product itself or just a defective receiver unit. And the last but not least important and for most of us probably the most important thing IT IS JAMMING 5Ghz home WI-FI which is just disappears from the wi-fi list and stops working. Wonder if on the prolong use it may damage your router.
Sad that i cannot return this item cause i threw the box. Hopefully my review will help the next purchaser. I would say keep looking. - Verified Store -
Works great once you figure the 'simple' connection guidelines. Certainly simple to connect but to get it to work some changes had to be made to the cable box input which were never discussed in the 1 page quick connect directions. - Verified Store
-
I tried to use it to transmit an audio signal across the room to my audio receiver instead of using a audio cable laying on the floor....the signal was so weak I had to turn my amplifier volume to nearly max Had I used my audio cable laying on the floor it would have blown the windows out! I tried all four channels and they were all the same...... BTW my amp is a 100 watts RMS per channel and I had to have it at nearly full volume to hear the transmitted weak distorted signal.....
Returning item needless to say! - Verified Store -
After investing more than a little time I finally got this device working. But the receiving TV was only displaying black and white. The transmitter and receiver antennas are roughly 10-12 feet apart with only a single wall between them. I'd be leery of trying to run this at the advertised distance. I was never able to get the range extender to work properly so I could control the cable box remotely. I guess if it seems too good to be true then it probably is. I won't be using it and can't recommend it. - Verified Store
-
This is a great piece of electronics. I had another one of a different brand- it sort of worked. This wireless video performs flawlessly in my application. Would highly recommend this. - Verified Store
-
This a plug and play product nothing to even read to install. The picture is very clear from a tested 100ft away I haven’t tried the sound yet because how I have it set up I have no need for audio. Oh this product is Canadian so it’s very user-friendly. - Verified Store
-
fonctionne a merveille.. - Verified Store
-
Bien - Verified Store
-
They work great. - Verified Store
-
Its a nifty little gadget but it just didn't work for me. The support staff were wonderful in trying to get it connected properly to give me the proper signal. They were very patient and positively suggestive of solutions. - Verified Store
-
This unit was ordered to replace an older failing Terk unit that functioned adequately for many years.
An occasionally used guest bedroom required A link to the cable box about 15 feet away in another room and the transmitter/receiver option always seemed to be in adequate solution . This set up provides a nice clear picture with a little evidence of interference but unfortunately even with the properly installed IR extender it was not able to change channels from the other room. This is not a unusual set up simply a Samsung SMT/c5320 Cable box which worked perfectly with the older Terk unit.
Vendor did respond to my inquiry and sent a new IR extender But this did not work either. So I’ll be sending the whole thing back. - Verified Store -
Product works as stated but occasionally loses sound and picture do to signal interference. Changing channel and transmitter/receiver alignment does not seem to solve problem. - Verified Store
-
good - Verified Store
-
This works great for the second TV. I love it. - Verified Store
